Percolation Tests carries out BRE365 soakaway percolation testing and foul infiltration testing across Kenilworth and the surrounding area between Coventry and Warwick.
We are based in Wolverhampton, about 29 miles away, and Kenilworth is well inside the area we cover as standard. We have carried out 39 tests within fifteen miles of Kenilworth and 93 within twenty-five, so the ground around the town is familiar to us.
Ground conditions in Kenilworth
Kenilworth sits on Mercia Mudstone clay typical of central Warwickshire, generally slow-draining, though sandstone bands in places offer better percolation. The town’s mix of established residential areas and newer development on its outskirts means ground conditions can vary considerably from one site to the next.
Mudstone and clay drain slowly, so sites around Kenilworth more often return marginal or failing rates than free-draining ones. That is not automatically bad news — a measured rate, even a poor one, is what the drainage engineer needs to size the system or to justify a different approach. What causes problems is assuming a rate. River terrace gravels along the valleys can drain far better than the surrounding ground, and the only way to know which you have is to dig and time it.
What we test for
- BRE365 percolation testing for surface water soakaway design
- Foul effluent infiltration testing (Part H) for septic tanks and treatment plants
- Drainage strategy support for planning submissions
What a BRE365 test involves
The method comes from BRE Digest 365, and it takes longer than most people expect. It is not one hole and a stopwatch.

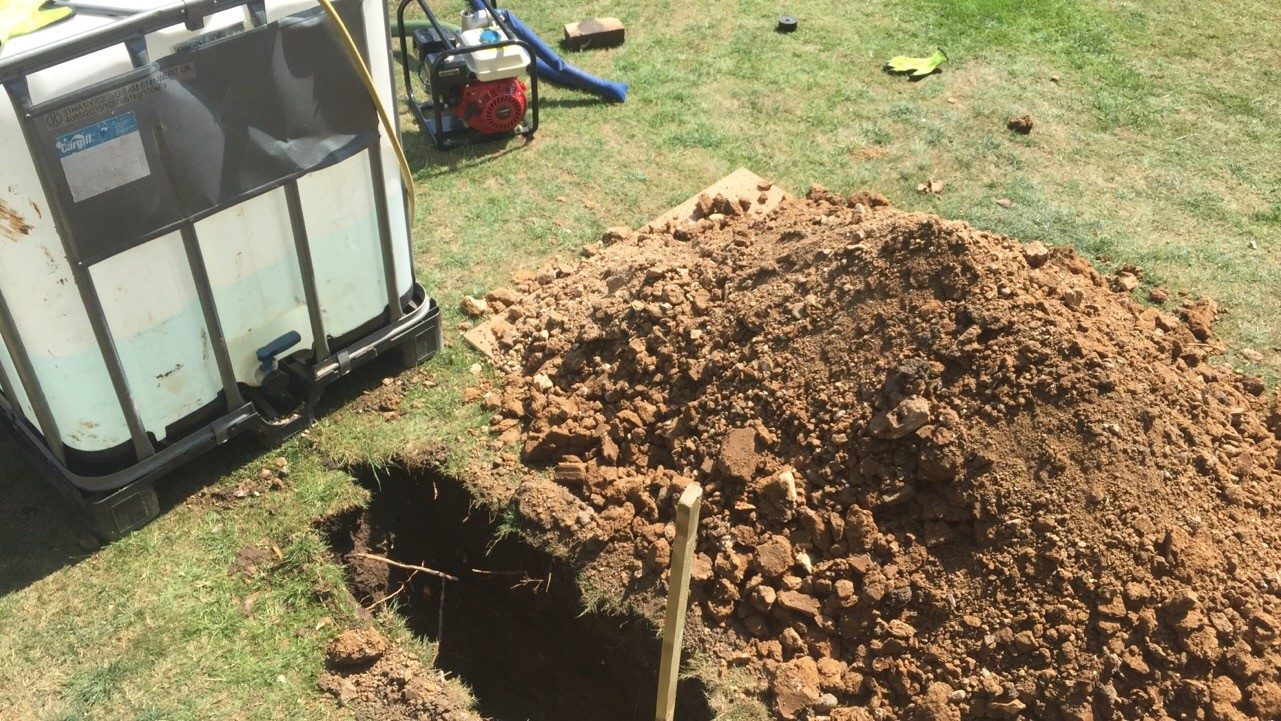

- Trial pits are dug where the soakaway is proposed and taken below its intended base. How many depends on the size of the site and what the drainage design needs.

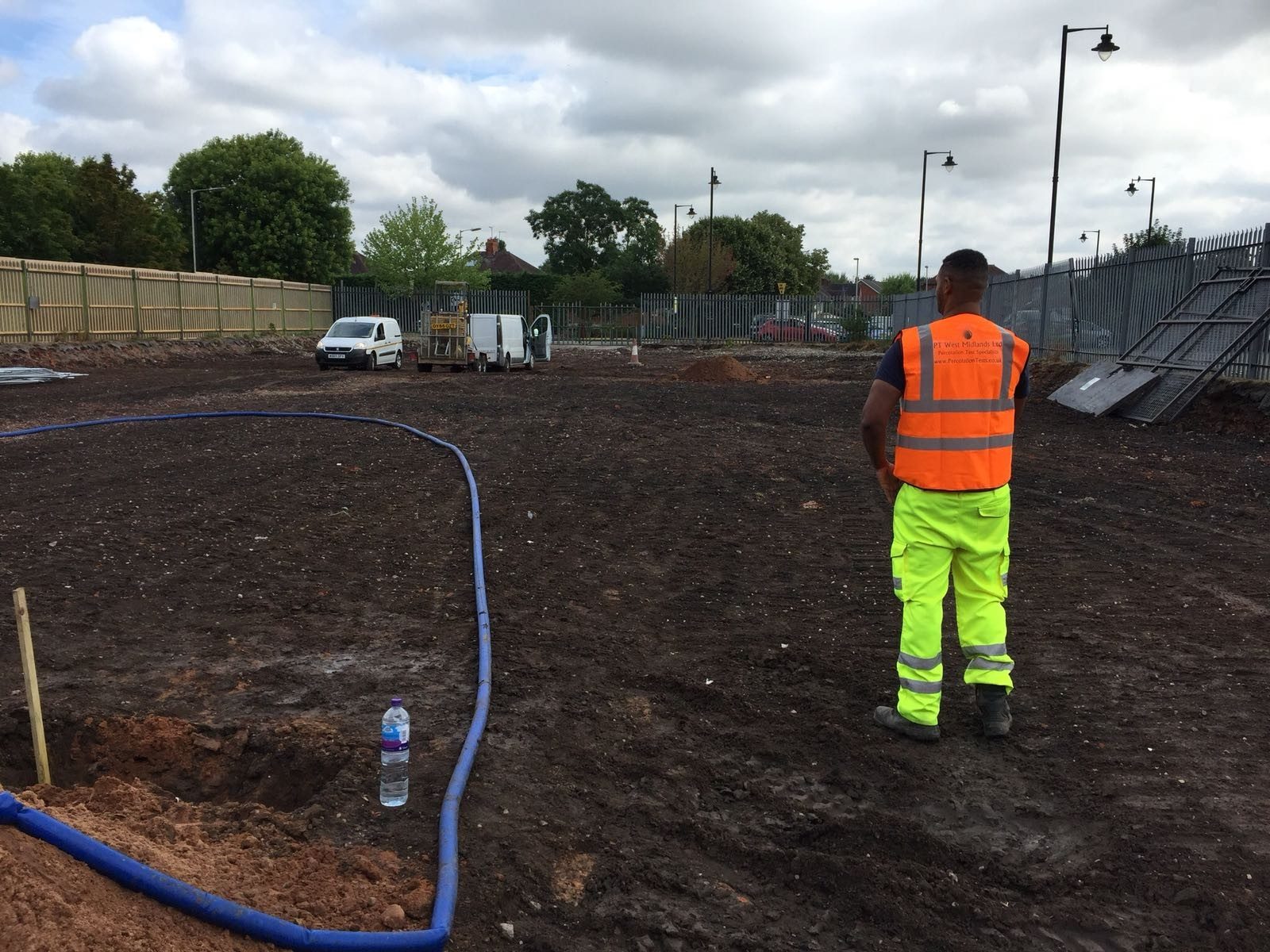

- Each pit is filled to at least 75% of its effective storage depth before timing begins.

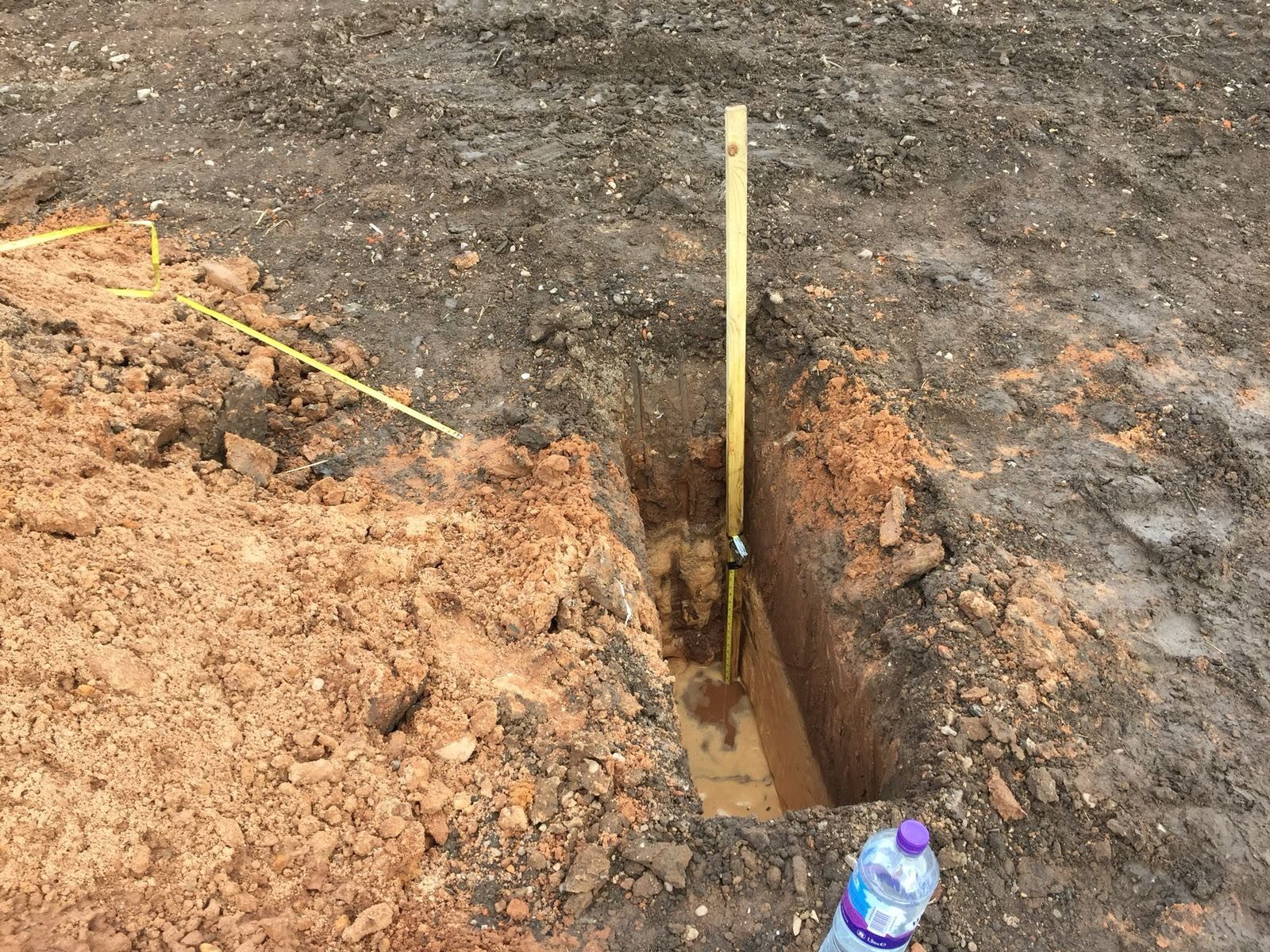

- Each pit is then filled and timed three separate times, recording how long the water takes to fall from 75% to 25% of the effective storage depth.
- The slowest result is the one used, so the design is based on the worst case rather than a flattering one.
Because every pit is tested three times and has to drain fully in between, a proper test is not an hour’s work. We would rather tell you a site is unsuitable than hand over a figure that will not stand up at planning.
Planning conditions in Kenilworth
Applications in the Kenilworth area are dealt with by Warwick District Council, and drainage conditions are attached routinely — particularly on rural plots, barn conversions and self-builds with no mains surface water connection. The condition normally asks for infiltration testing to BRE365 and a soakaway design based on the result, approved before work starts.
Testing early is worth the trouble. If infiltration turns out not to be viable the drainage strategy has to change, and discovering that after the groundworks are priced is an expensive surprise.
Septic tanks and foul drainage
Surface water and foul drainage are tested differently, and the results are not interchangeable. A drainage field for a septic tank or treatment plant is sized using BS 6297, which Part H of the Building Regulations refers to. If your site near Kenilworth needs both a soakaway and a drainage field, we can carry out both tests in one visit rather than two.
What you receive
- A full report with the recorded times for every pit and every fill
- The calculated infiltration rate, ready to hand to your engineer or planner
- Trial pit locations and depths
- Photographs of the testing on site
- A clear statement of whether a soakaway is viable, and if not, why not
Coverage
We test across Kenilworth and the surrounding villages towards Warwick and Coventry. Available Monday to Friday.
Get a quote
Contact us for a free, no-obligation quote for percolation or infiltration testing anywhere in Kenilworth. Call 01902 475653 or request a quote online.
Percolation testing around Kenilworth
Each dot is a site we have tested. 19 within ten miles of Kenilworth, 77 within twenty-five.
